Description

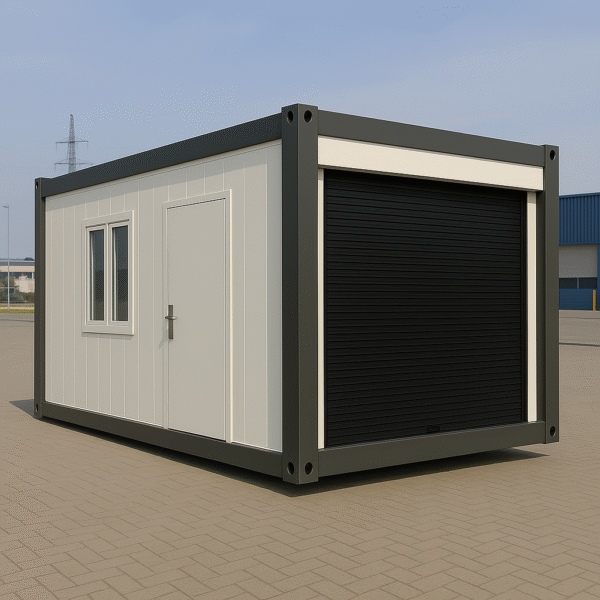

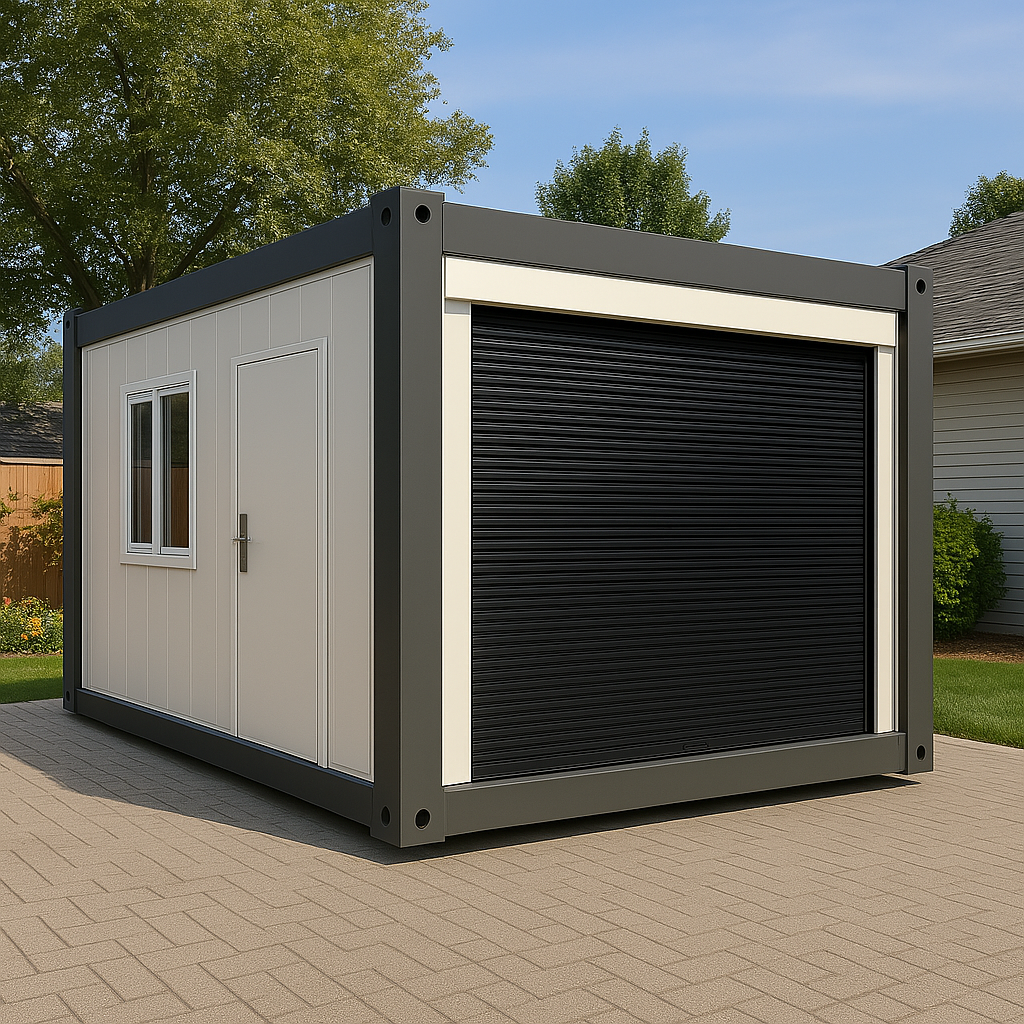

18 SQUARE METERS/ 193 SQUARE FEET:
WIDTH 3 METERS/ 9.84 FEET, LENGTH 6 METERS/ 19.70 FEET, HEIGHT 2.80 METERS/ 9.20 FEET.
ALL UNITS INCLUDE:
EXTERIOR SECURITY SHUTTER, ONE (1) METAL SECURITY DOOR, ONE OR TWO (1-2) WINDOWS WITH PROTECTION BARS, CEILING FINISHES WITH COLOR OPTIONS: BLACK, WHITE, GRAY, PVC FLOOR, ONE (1) PAINTED STEEL SECURITY DOOR.
MATERIALS DESCRIPTION:
EXTERIOR SECURITY SHUTTER: FLAT STAVE TYPE ZINTRO AVOIDS THE OXIDATION, METAL PAINTED, ELECTROSTATIC PAINT. CURTAIN STRIPS – 26 GAUGE. COMPLETE NORMAL MECHANISM, I.E. ONLY DRUMS, SPRINGS AND TUBE. LATERAL GUIDES IN 14 GAUGE.
IF THE AREA TO COVER IS VERY LARGE AND YOU WANT MANUAL MECHANISM OF GEARS WE ALSO MAKE IT BUT IT WOULD HAVE A DIFFERENT COST ASK FOR IT. IF YOU WANT AN ACCESS DOOR WE CAN ALSO MAKE IT WITH NORMAL OR SECURITY PLATES, ASK FOR THE COST.

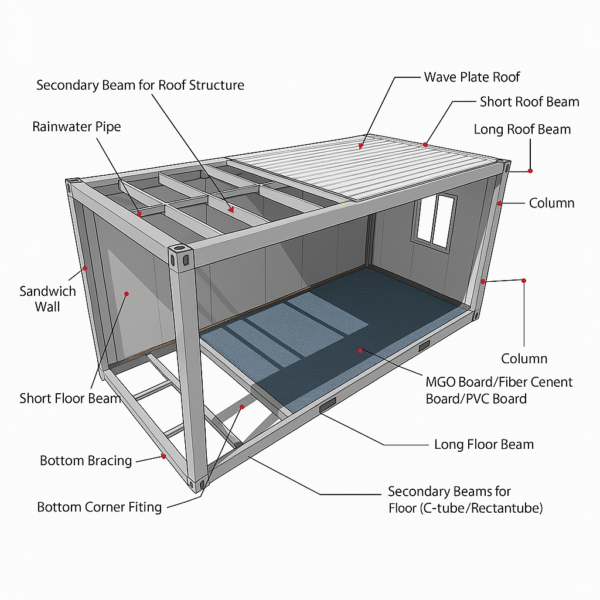

STRUCTURE: GALVANIZED AND STEEL, PAINTED WITH ELECTROSTATIC PAINT. SPECIFICATIONS IN QUOTATION.
WALLS: GALVANIZED REINFORCED, SOUNDPROOFING, A GRADE FIREPROOF WITH THERMAL INSULATION ROCK WOOL, PANEL OF 2.53 METERS/ 8.30 FEET LONG, BY .95 CENTIMETERS WIDE/ 3.28 FEET WIDE, PAINTED OR NATURAL.
ROOF: 16 CENTIMETERS/ 6.30 INCHES TOTAL THICKNESS IN SLAB, 4 COMPONENT REINFORCED PANEL; CEILING PANEL, A GRADE FIREPROOF WITH THERMAL INSULATION ROCK WOOL, GALVANIZED STEEL STRUCTURE REINFORCEMENT, EXTERIOR GALVANIZED SHEET. SPECIFICATIONS IN QUOTATION.
FLOOR: 18 MM VITROMAGNESIUM CEMENT FLOOR, PIECE OF 2.79 METERS LONG BY 1.48 METERS WIDE/ 9.15 LONG BY 4.86 INCHES WIDE, 0.71 INCHES/ THREE QUARTERS (3/4) THICK. WITH OR WITHOUT 3 MM PVC FINISH COATING/1/8 (0.1181 INCH).
