Description

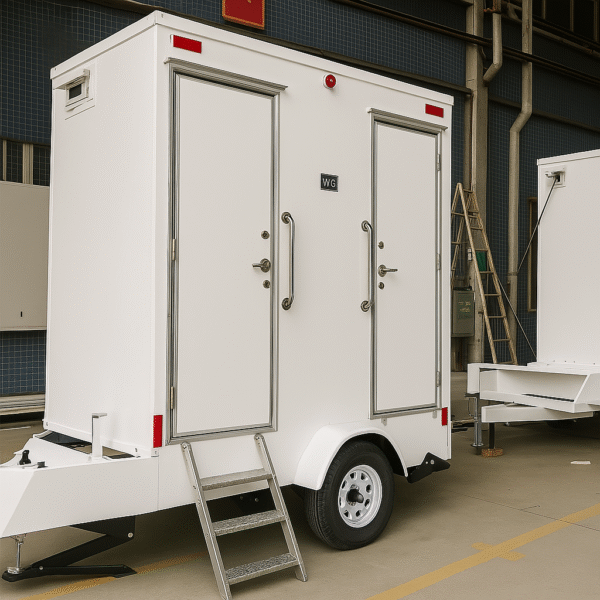

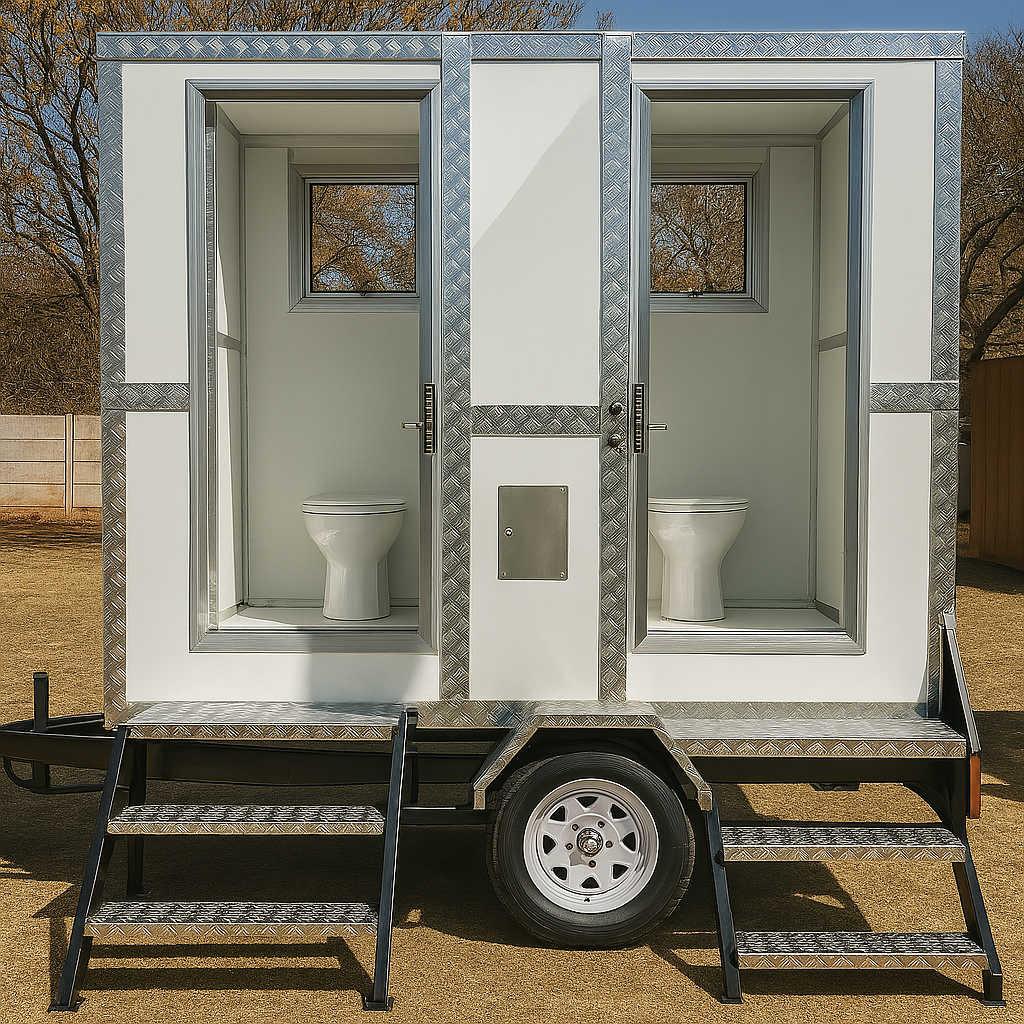

UNIT SIZE:

2.8 M (L) × 1.6 M (W) × 2.5 M (H)
9.19 FT × 5.25 FT × 8.20 FT

AXLE AND TIRES:

SINGLE AXLE WITH BRAKING SYSTEM
TIRE SIZE: 165/195

WATER TANKS:

FRESH WATER TANK: 300 L OR 400 L (STAINLESS STEEL)
GREY WATER TANK: 450 L OR 800 L (STAINLESS STEEL)

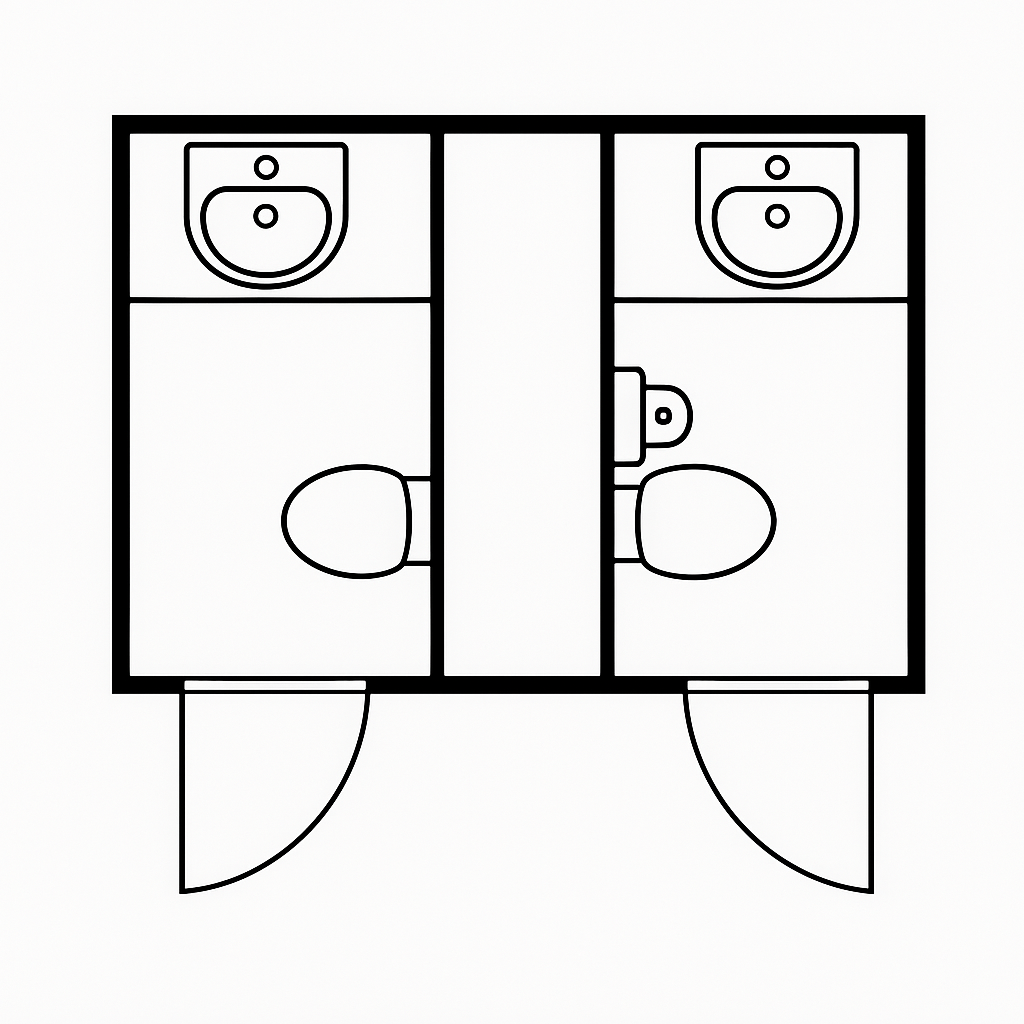

FACILITIES:

1 MEN’S ROOM
1 URINAL
1 WOMEN’S ROOM

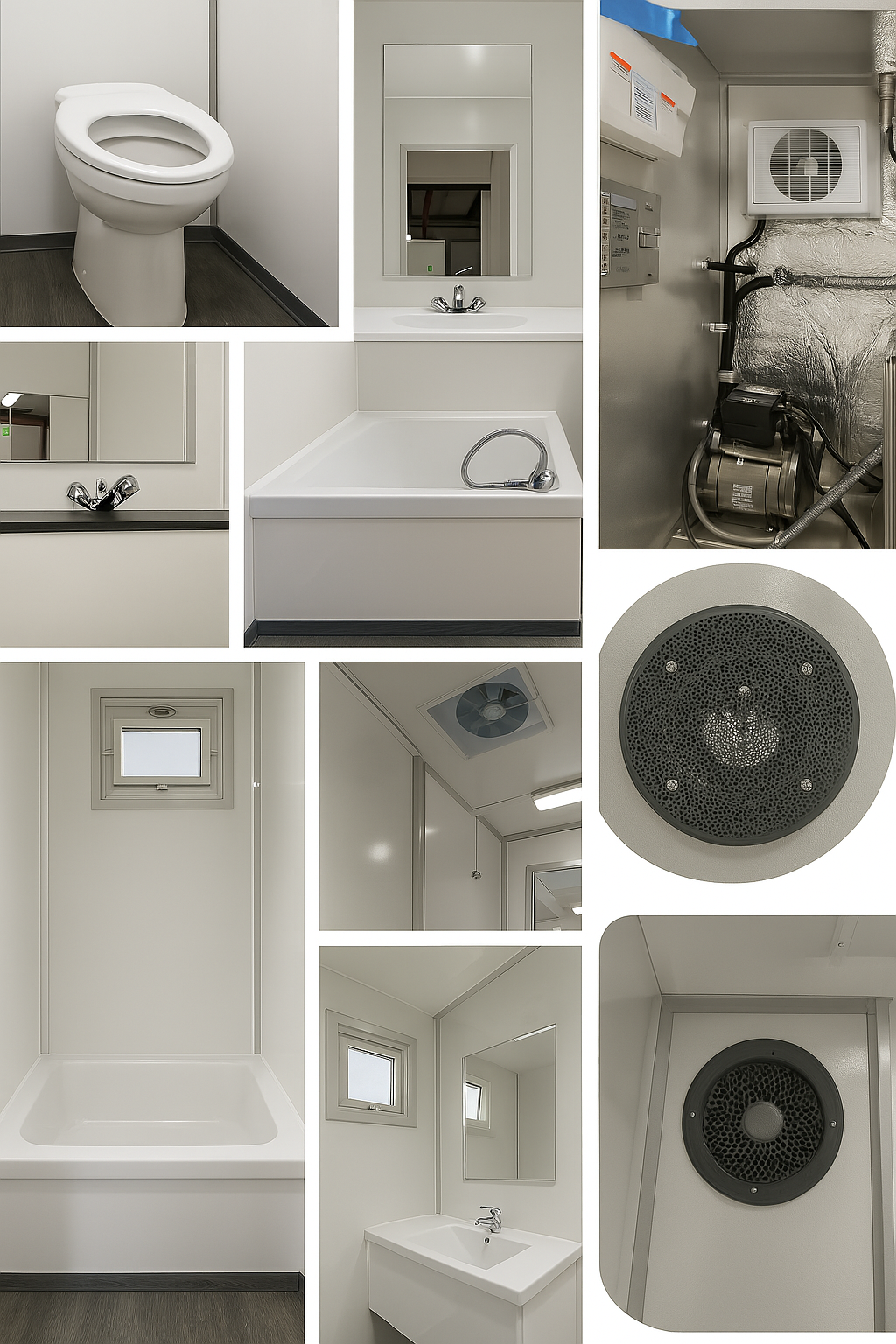

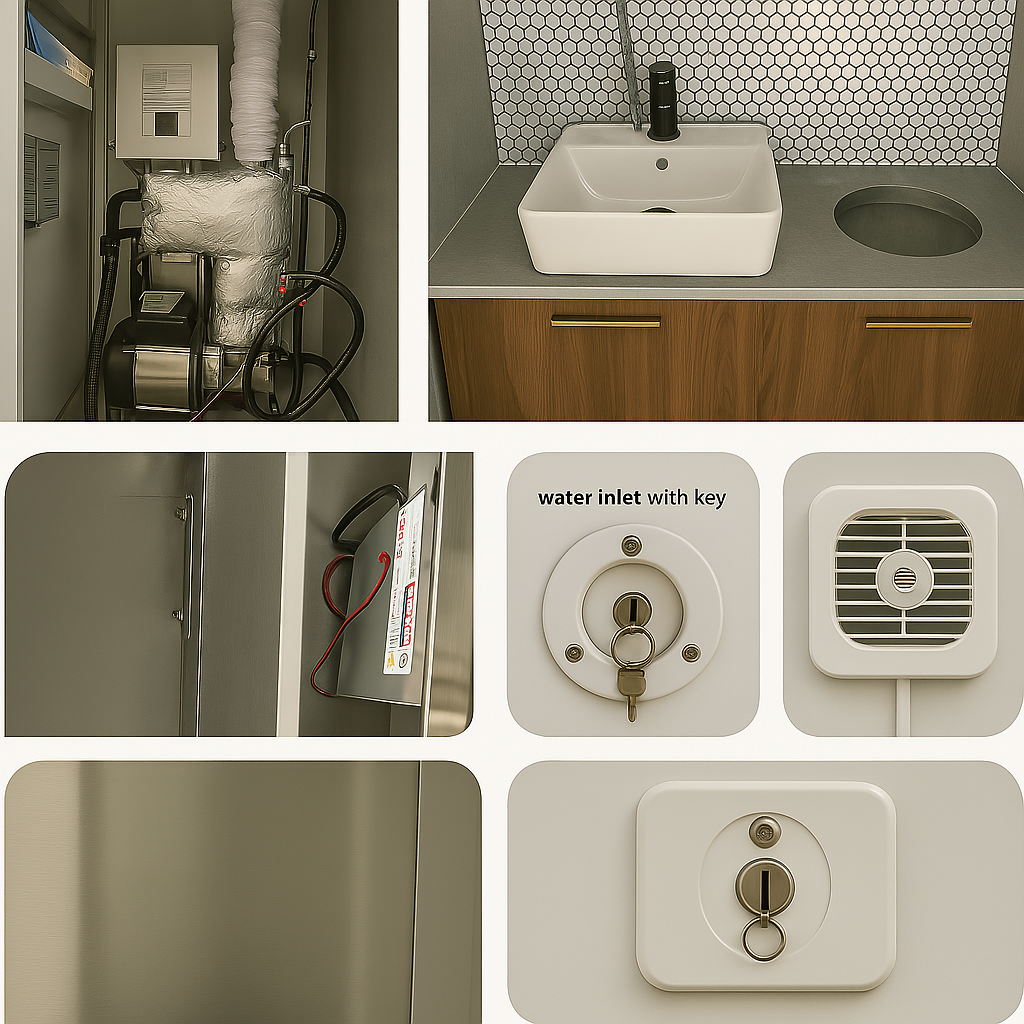

EQUIPPED WITH WASH BASIN, FRESH WATER TANK, MIRROR, VENTILATION
AIR CONDITIONING (A/C)
INTERNAL AND EXTERNAL LED LIGHTS
SELF-LEVELING STAIRS WITH PLATFORMS AND RAILING FOR DISABLED USERS
STAINLESS STEEL SINK

MATERIALS DESCRIPTION:

STRUCTURE:
OUTER SHEATH MADE OF FIBERGLAS, GALVANIZED STEEL, PAINTED
SPECIFICATIONS DETAILED IN QUOTATION

WALLS:
OUTER SHEATH MADE OF FIBERGLAS, GALVANIZED REINFORCED STEEL
SOUNDPROOFING, A-GRADE FIREPROOF WITH THERMAL INSULATION ROCK WOOL
PANEL DIMENSIONS: 2.53 M (8.30 FT) LONG × 0.95 M (3.28 FT) WIDE
PAINTED OR NATURAL FINISH

ROOF:
OUTER SHEATH MADE OF FIBERGLAS
16 CM (6.3 INCHES) TOTAL THICKNESS IN SLAB
4-COMPONENT REINFORCED PANEL: CEILING PANEL, A-GRADE FIREPROOF WITH THERMAL INSULATION ROCK WOOL, GALVANIZED STEEL STRUCTURE REINFORCEMENT, EXTERIOR GALVANIZED SHEET
SPECIFICATIONS DETAILED IN QUOTATION

FLOOR:
18 MM VITROMAGNESIUM CEMENT FLOOR
FLOOR PIECE SIZE: 2.79 M (9.15 FT) LONG × 1.48 M (4.86 FT) WIDE
THICKNESS: 0.71 INCHES (3/4 INCH)
OPTIONAL 3 MM PVC FINISH COATING (1/8 INCH)
